Detailed：

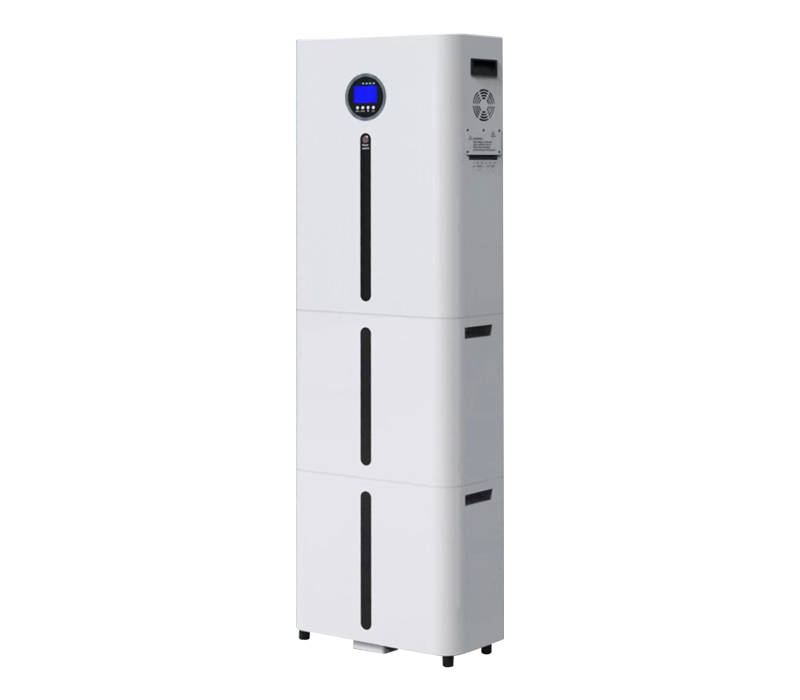

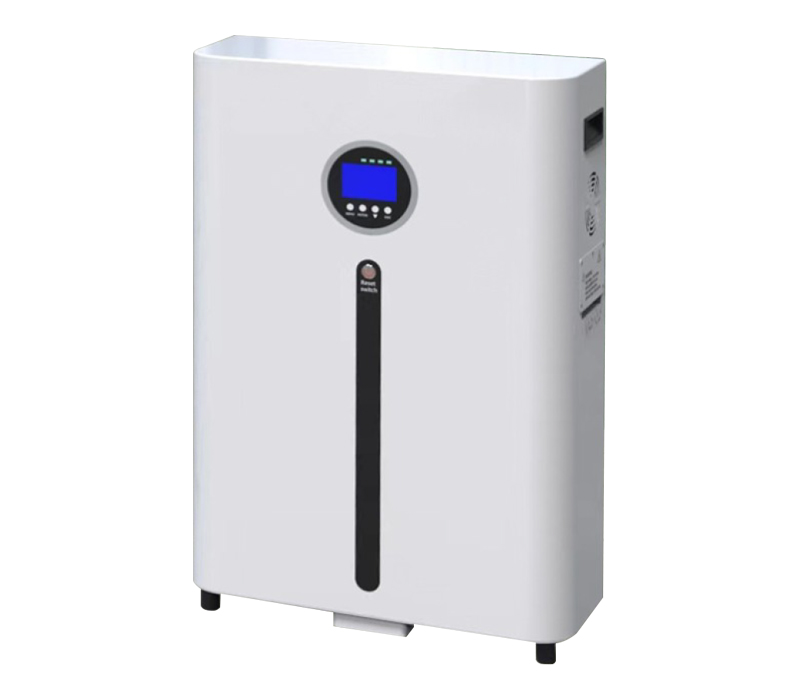

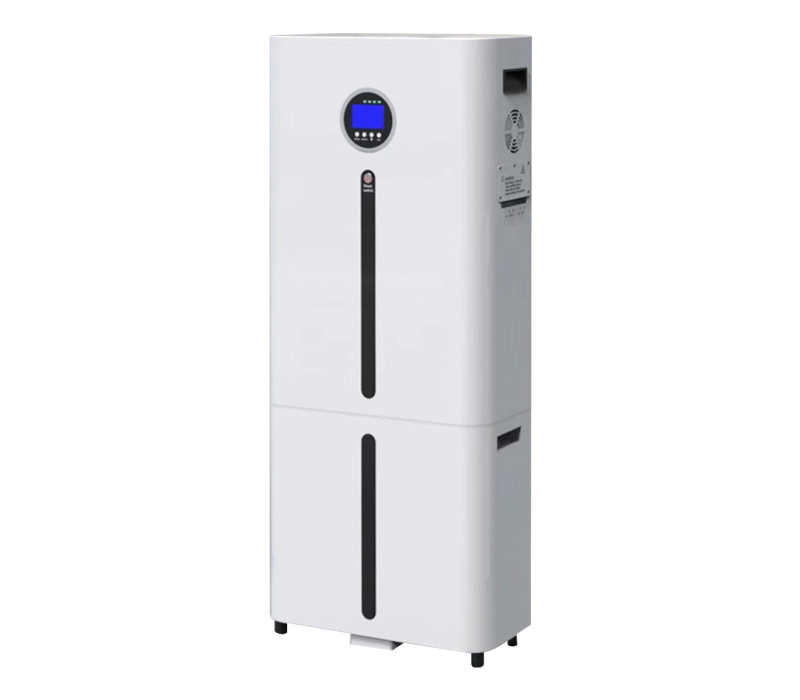

智能家居储能电源产品采用磷酸铁锂电池系统。
型号 Model | STBG51/100-NK25 | STBG51/200-NK25 | STBG51/300-NK25 | STBG51/400-NK25 |
材料体系 Material system | 磷酸铁锂Lithium iron phosphate | |||
标称电压 Nominal voltage | 51.2V | |||
电池组能量 Battery energy | 5.12KWh | 10.24KWh | 15.36KWh | 20.48KWh |
循环寿命 Cyclinglifespan | 5000周0.2C充电/0.5C放电(80%DOD、70%EOL),25℃ 5000weeks 0.2C charge/0.5C discharge(80%DOD,70%EOL),25℃ | |||
工作温度 Working temperature | 充电Charging:0°℃~45°℃放电Discharge:-10°℃~55℃ | |||
产品重量 product weight | ≈55KG | ≈100KG | ≈145KG | ≈190KG |
| s2 (1w~H) | 464*190*680mm | 464*190*1080mm | 464*190*1480mm | 464*190*1880mm |
产品认证 Product certification | IEC62619/UN38.3/CE-EMC/ROHS/FCC | |||
