Detailed：
应用领域：基站储能、家庭储能、风能和太阳能互补储能、大型储能。

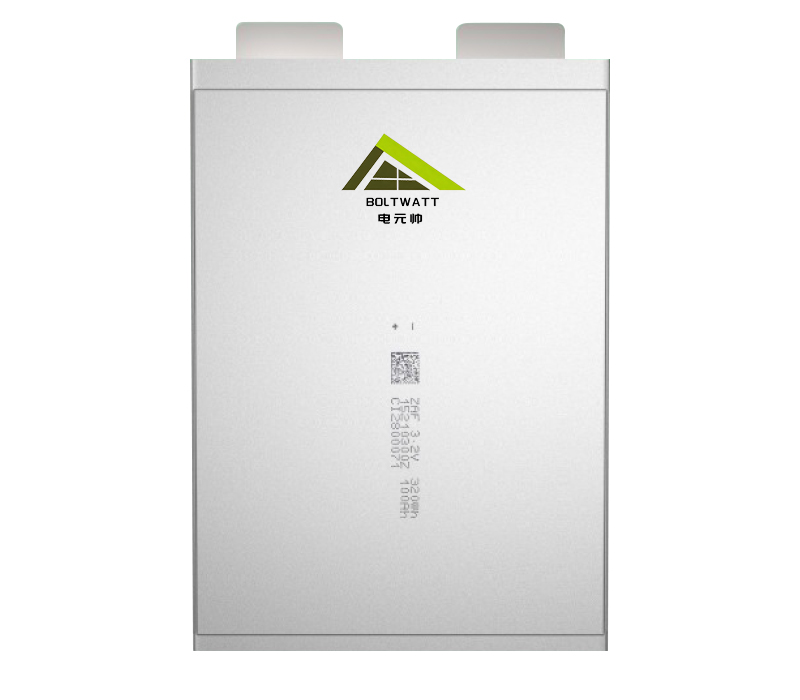

型号 Model | STF12165245 | STF12210300 | STF16210300 |
材料体系 Material system | 磷酸铁锂Lithium iron phosphate | ||
标称容量 Nominal capacity | 50Ah | 75Ah | 100Ah |
标称电压 Nominal voltage | 3.2V | ||
循环寿命 Cycling lifespan | 6000周0.2C充电/0.5C放电(80%DOD、70%EOL),25℃ 6000weeks 0.2C charge/0.5C discharge(80%DOD,70%EOL),25°℃ | ||
电 芯 重 量 ( K G ) Cell weight | ≈0.98KG | ≈1.45KG | ≈1.92KG |
能 量 密 度 比 ( W h / K g ) Energy density ratio | 170 | 180 | 190 |
工作温度 Working temperature | 充电Charge:0℃-45℃ 放电Discharge:-20°℃-60°℃ | ||
放电电流(25±3℃) Discharge current | 标准放电电流0.5C 最大持续放电电流1.0C 脉冲(50%SOC,10s)3 . 0C Standard Standard discharging current 0.5C Maxcontinuous discharging current1.0C Peak(50%SOC,10s)3.0C | ||
充电电流(25±3℃) Charging current | 标准充电电流0.33C 最大持续充电电流1.0C Standard charging current 0.3M3aCxcontinuous charging current1.0C | ||
单电芯内阻 Cell internal impedance | ≤1.0mΩ | ≤0.8mΩ | |
产品尺寸(厚*宽*长) Product Size(T*W*L) | 13mm*166mm*245mm | 12.5mm*210mm*310mm | 16.5mm*210mm*310mm |
产品认证 Product cerification | IEC62619/UL/UN38.3/ROHS | ||
